Quality accreditation for PleiKeo irrigation canal system

25/02/2021 14:37

Quality accreditation for PleiKeo irrigation canal system



Projects name:The canal system belongs to Plei Keo irrigation project
Location:  Ayun Commune, Chư Sê District, Gia Lai Province
General introduction:

Pleikeo irrigation work (Ayun commune, Chu Se district, Gia Lai province) with a total value of more than 119 billion VND, invested by the People's Committee of Chu Se district has just been completed in 2019. It is expected that, when put into operation, Pleikeo Irrigation will provide self-flowing irrigation water for about 400ha of 2-crop rice and create a source of irrigation for 100ha of crops of people in 10 villages of Ayun commune, helping to ensure food supply locally, contributing to hunger eradication, poverty reduction and local socio-economic development.

List of works:
+ Inspection of concrete quality on site by sample drilling method.

+ Verification of concrete strength by non-destructive method.

+ Inspection the soil tighness of the canal works and the works on the canal.

+ Inspection of reinforcement in concrete.

Images of inspection equipment:

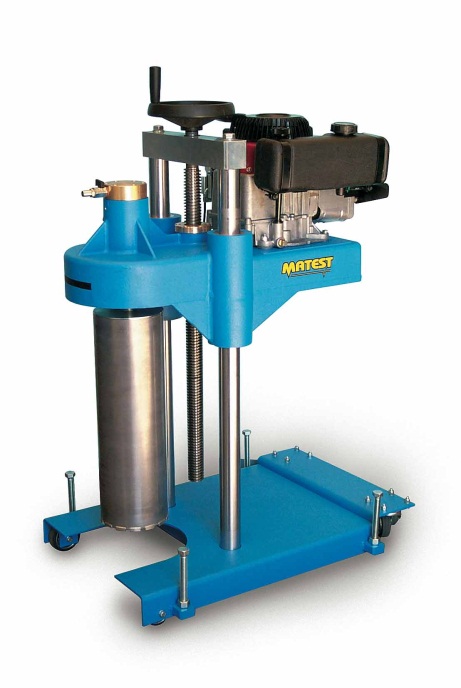

Concrete Core Drilling



Compression Machine

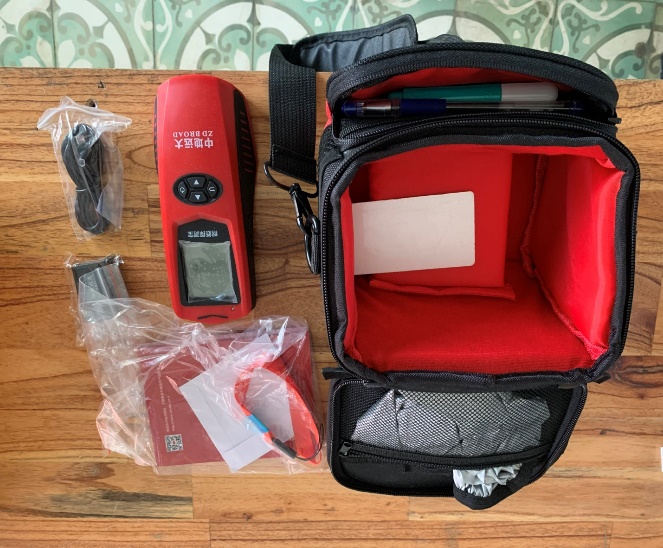

Rebar Locator

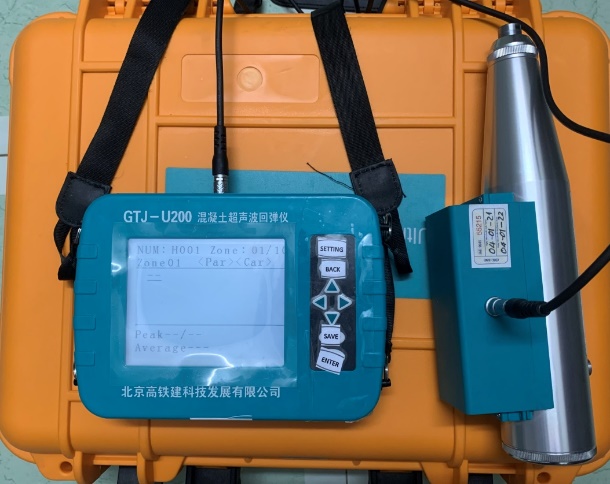

Concrete Test Hammer

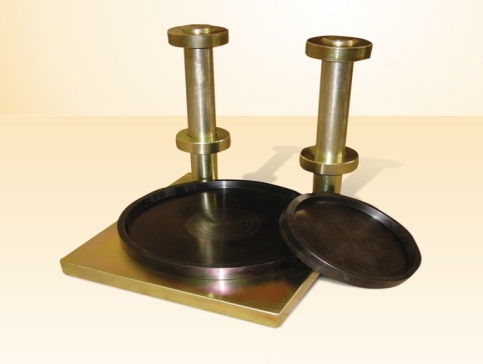

Tools for creating flat concrete cylinder samples

The vernier caliper showing the reading number 0.01mm

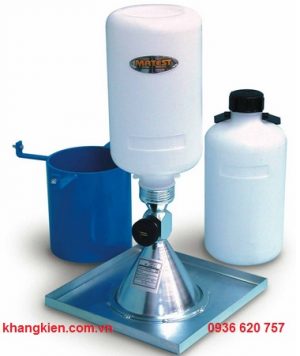

Sand Hopper

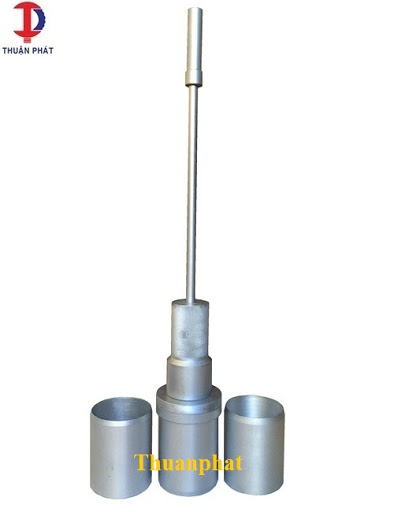

Ring knife soil sampling cutting tool

Technical scales

Standard Compacting tool

Images of project implemention:

Check the tightness at the main canal

Check the tightness at the main canal

Check the tightness at the N2 canal

Check the tightness at the N1 canal

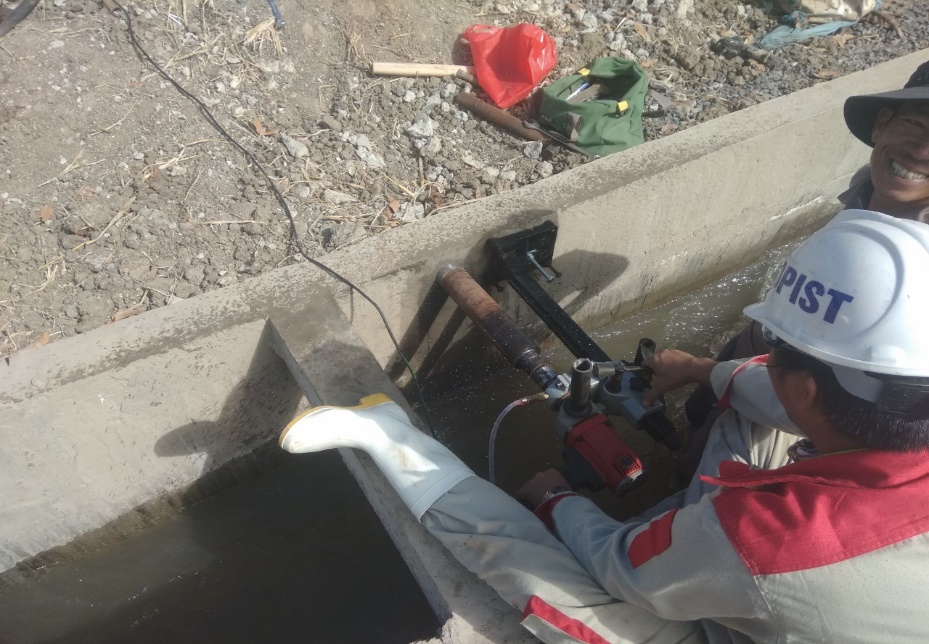

Collect concrete samples on site

Collect concrete samples on site

Collect concrete samples on site

Symbol the on-site drilling samples

Check the concrete strength

Check the concrete strength of steel pipe column

Check the concrete protection coatings thickness and the diameter of the reinforcement

Check the concrete strength of the canal edge

Check the concrete protection coatings thickness, the diameter of the reinforcement column No.3

Check the concrete protection coatings thickness, the diameter of the reinforcement of canal edge

Check the concrete strength of the columns

Check the concrete strength of concrete slabs

Check the concrete protection coatings thickness, the reinforcement’s diameter of the gate

Check the concrete protection coatings thickness, the reinforcement’s diameter of steel pipe columns No.7

Check the concrete strength of steel pipe columns No.7

Check the concrete strength of the canal regulating gate

Sample preparation

Compression testing of on-site samples

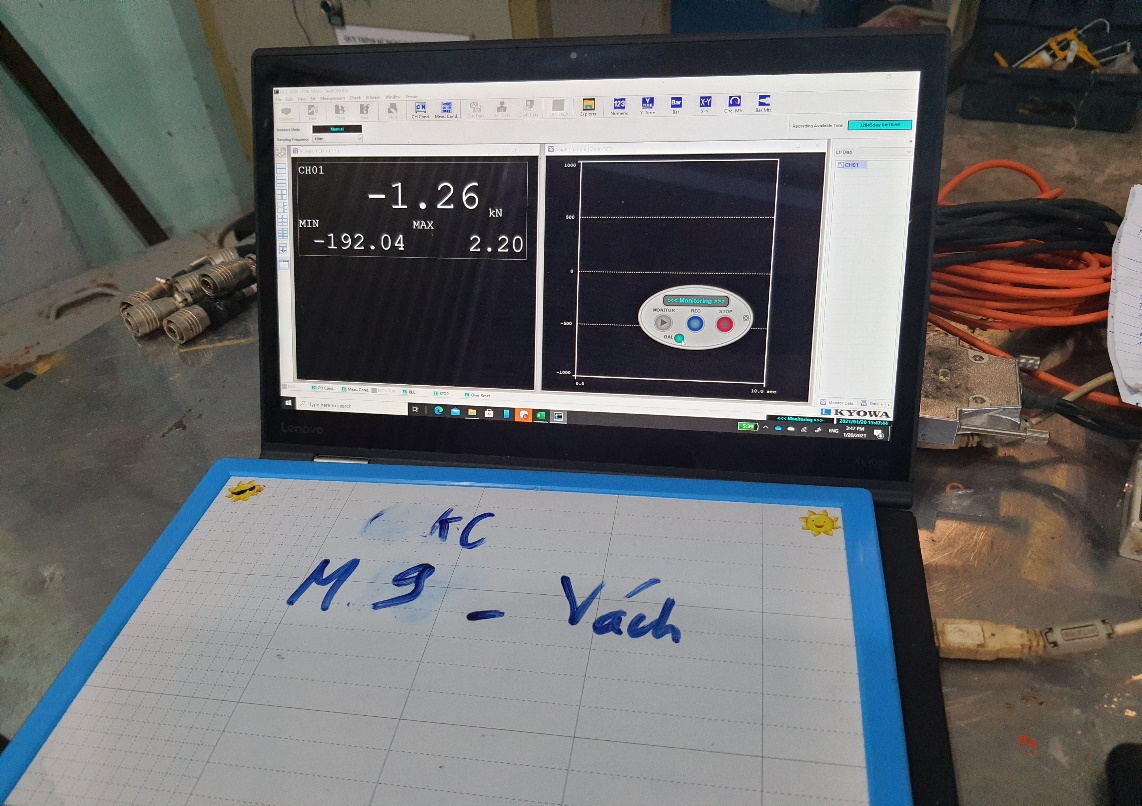

Results of compressing on-site concrete samples

Results of compressing on-site concrete samples
